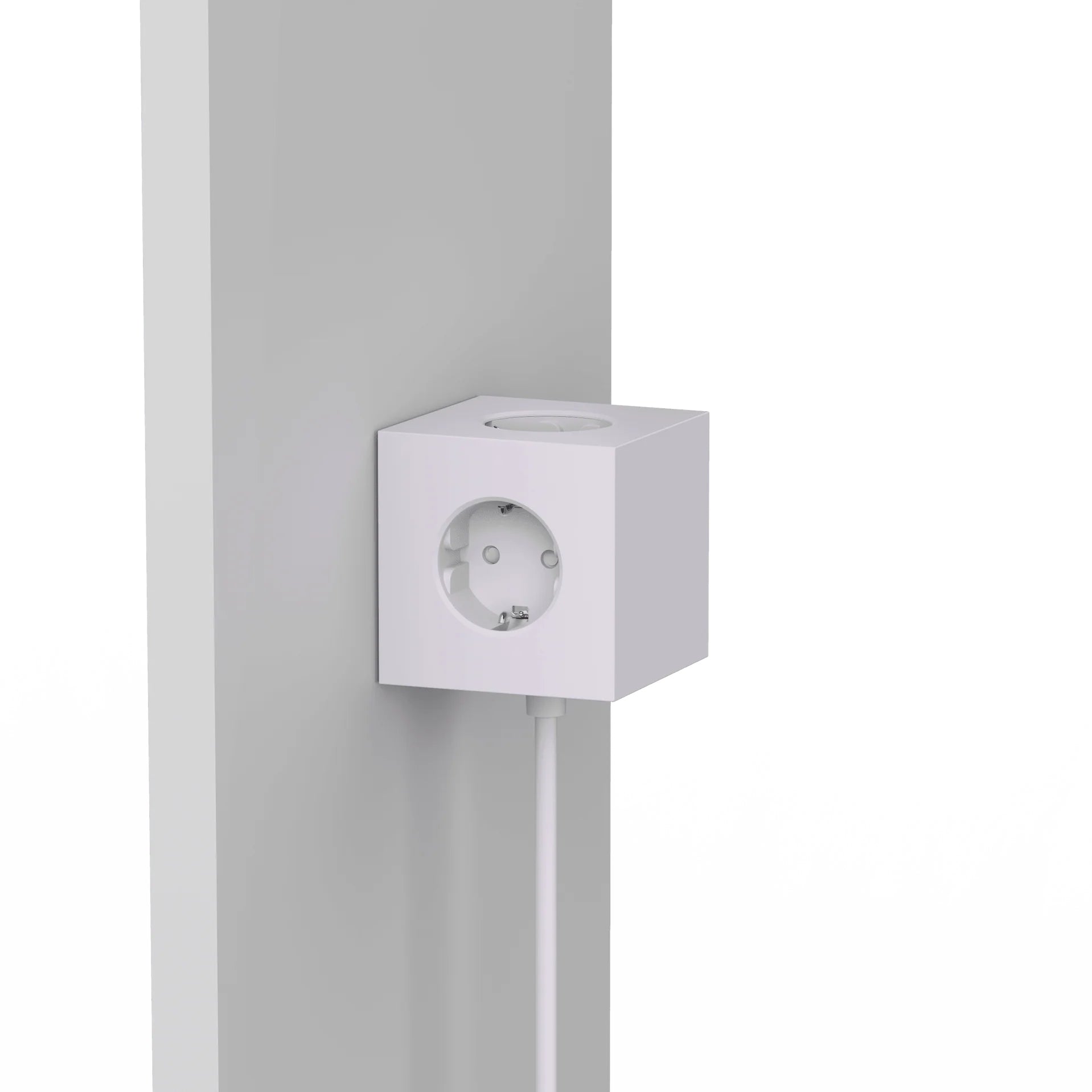

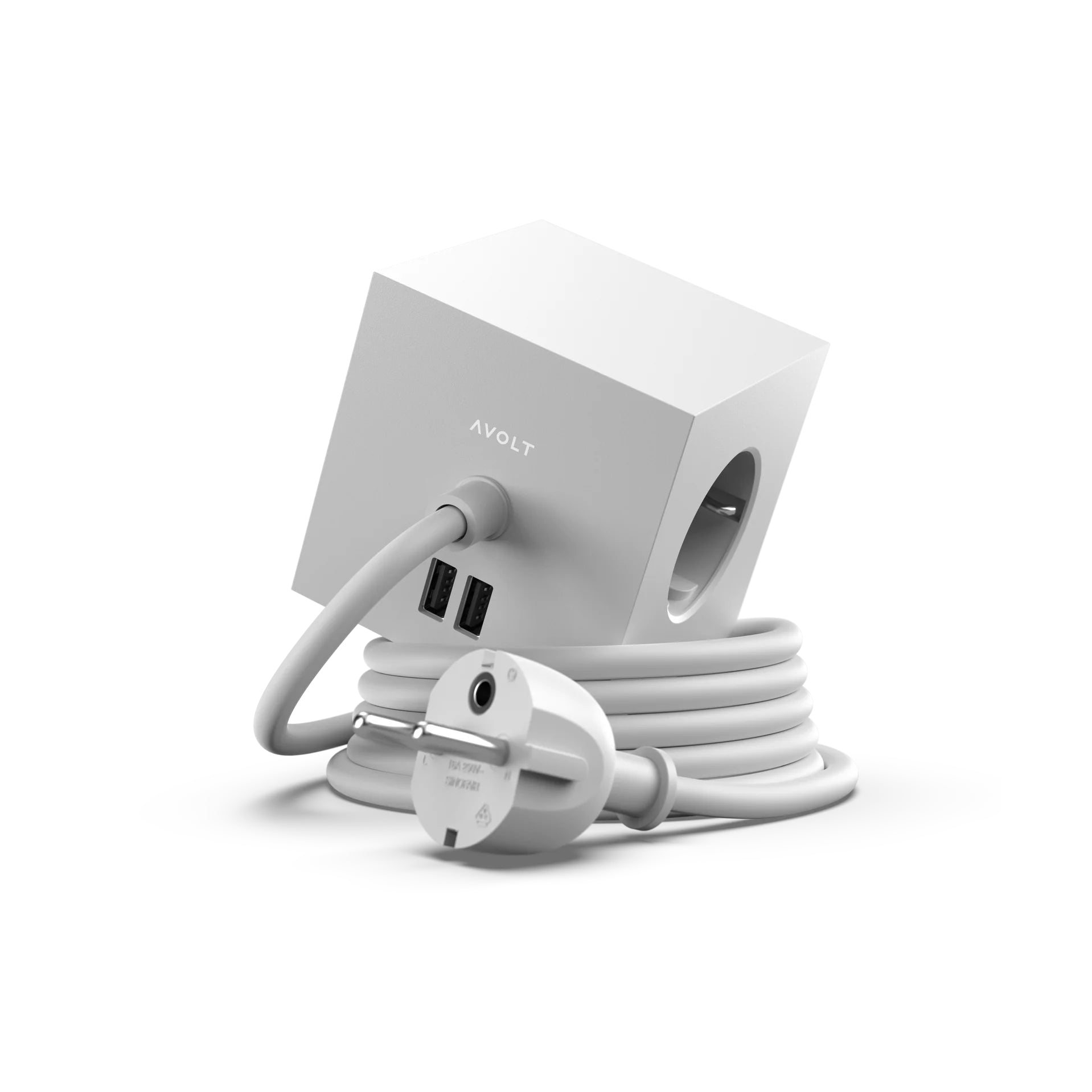

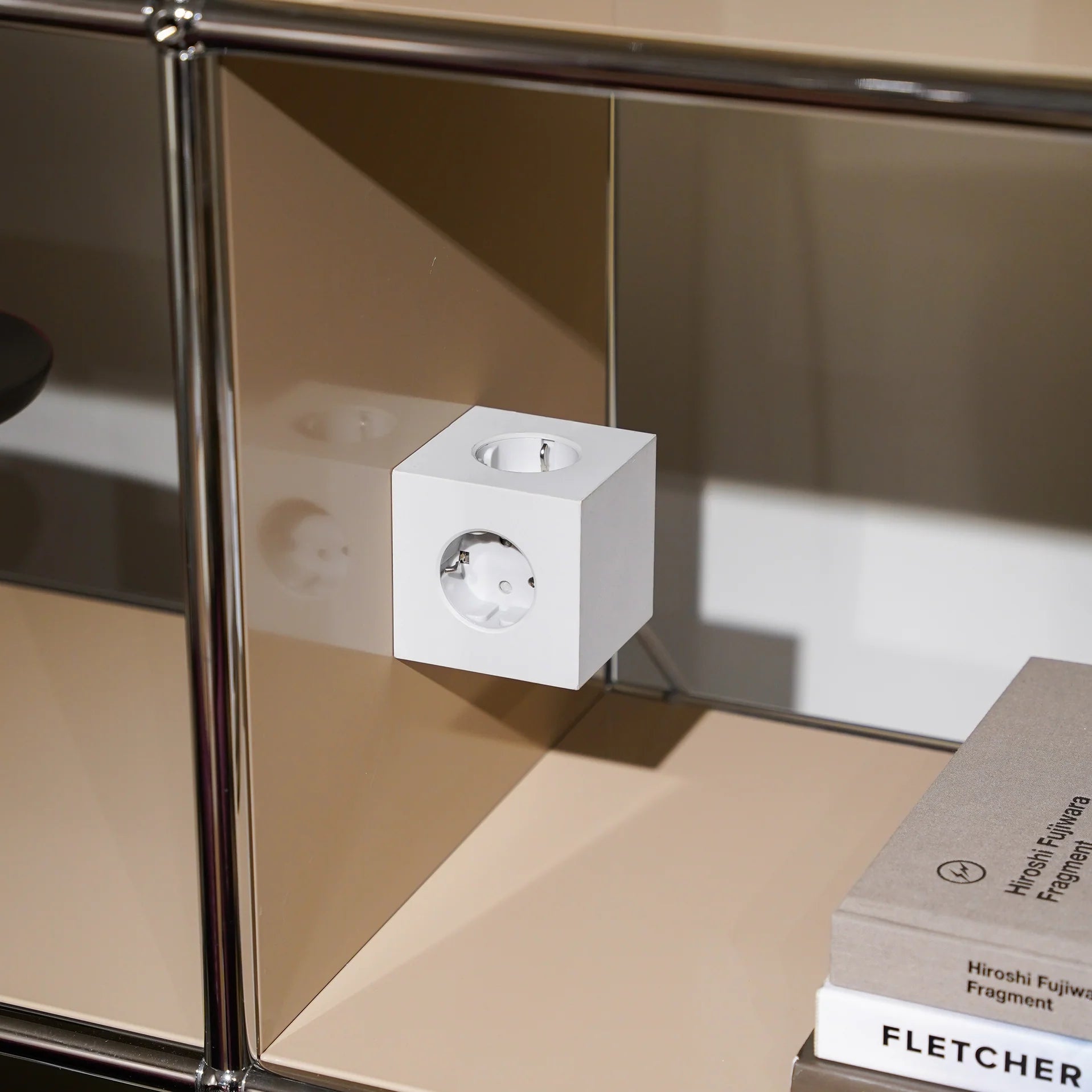

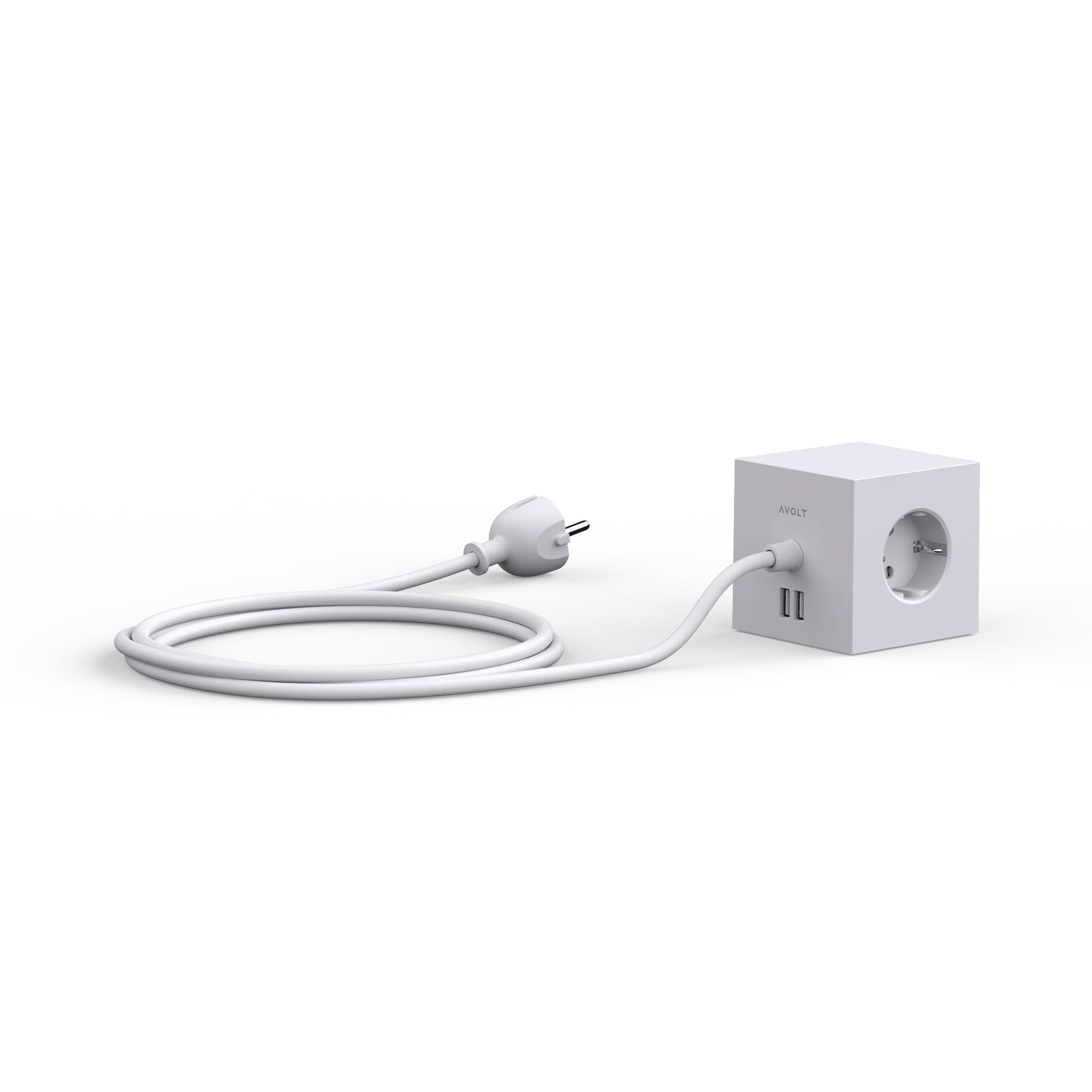

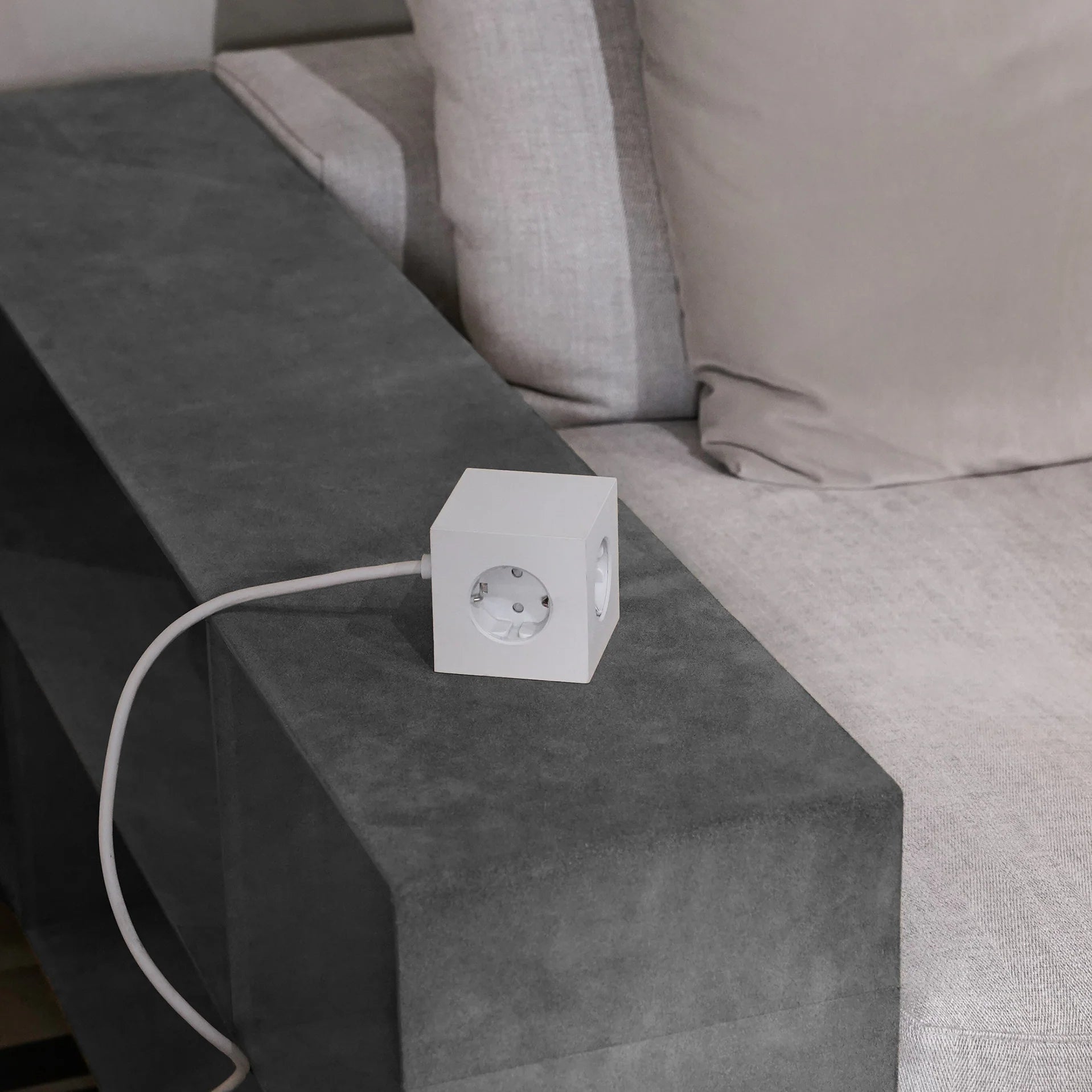

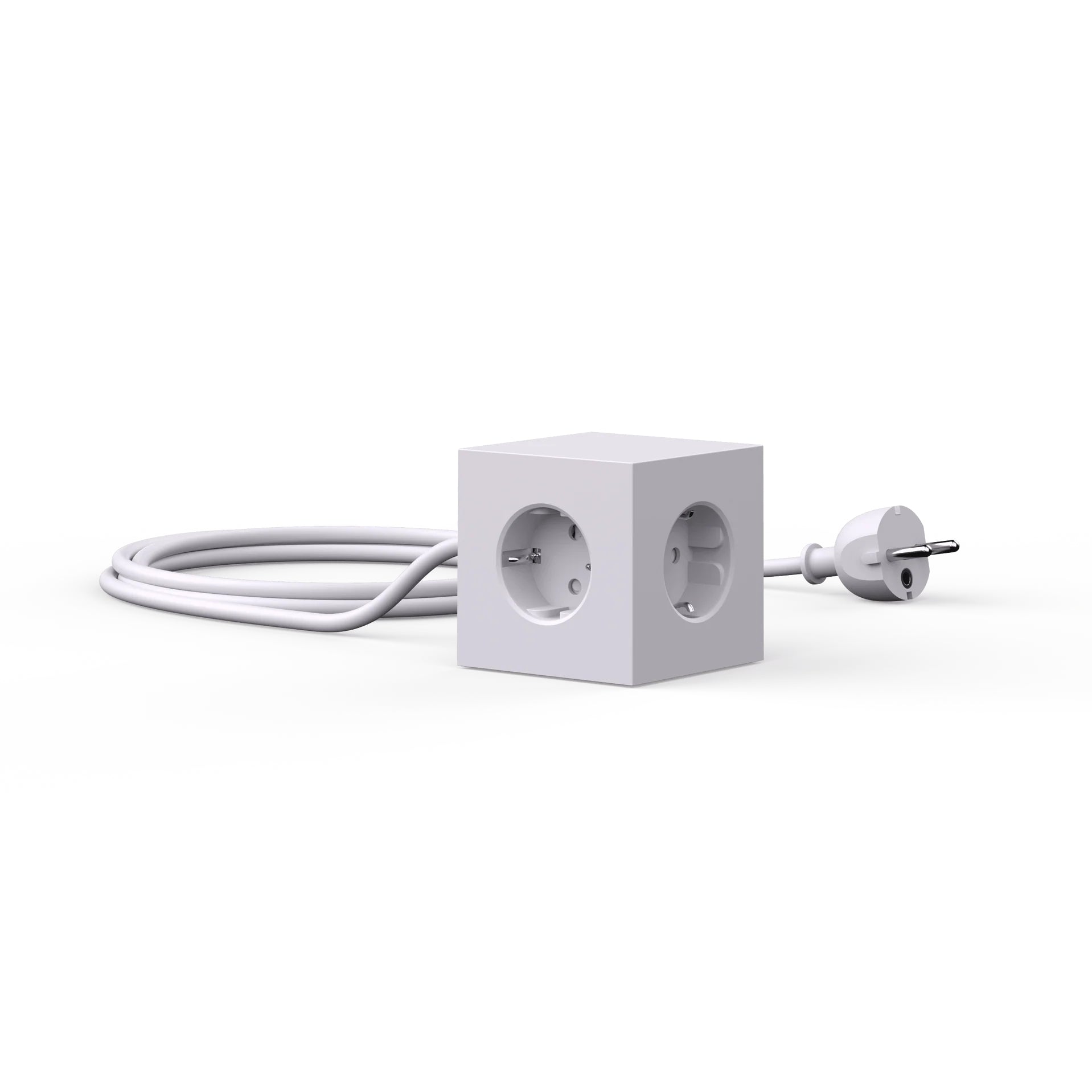

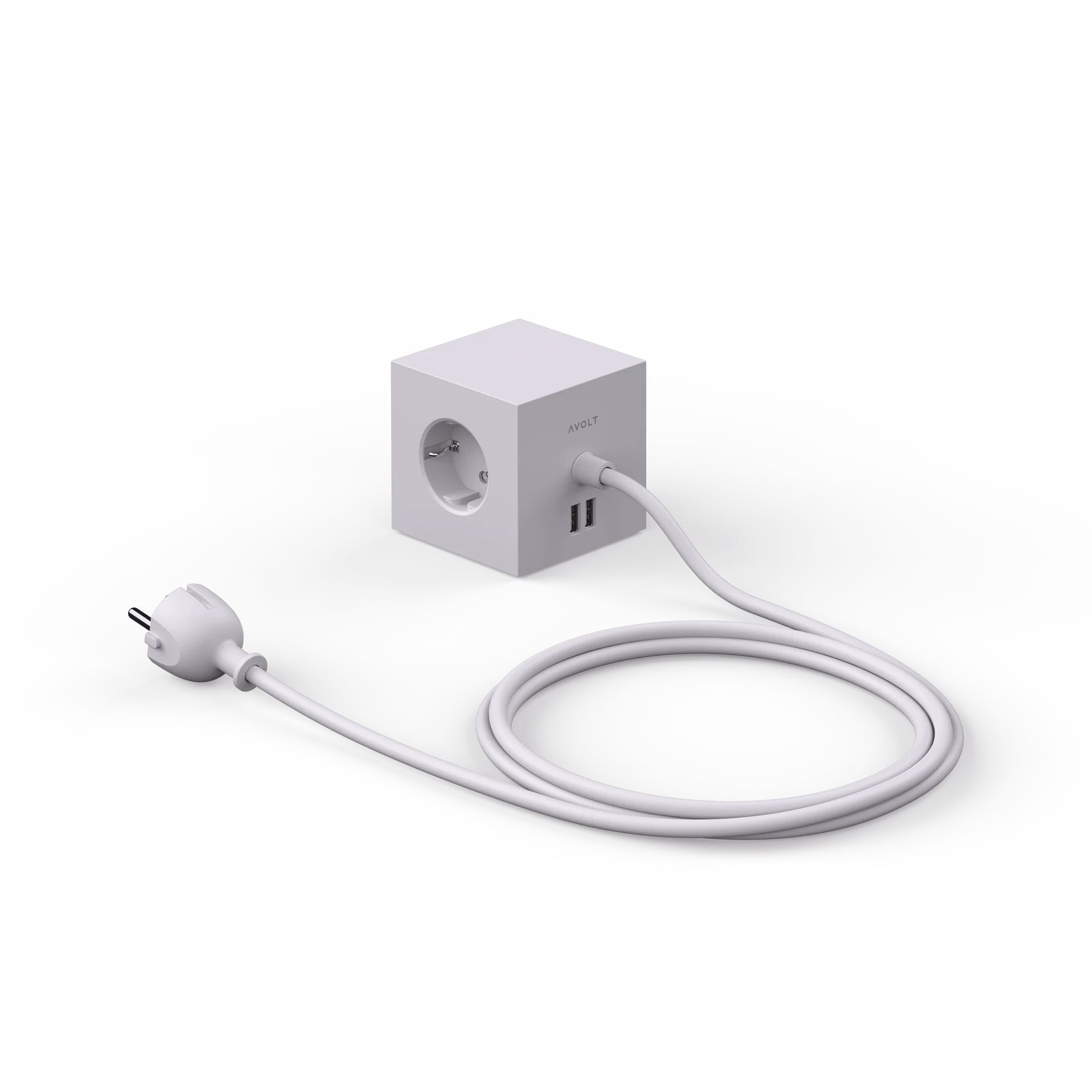

The Square 1 USBA is an iconic and minimalist power extender for homes, offices, and public spaces that offers excellent functionality and usability. It has three Type F Schuko sockets, dual USB Type A ports that provide up to 15 W charging power, and a very flexible 1.8-meter-long power cable. The base of the product is magnetic. It can be safely mounted on any surface in combination with the included iron plate with a pre-applied adhesive strip. The Square 1 USB A is made from the finest materials with an exquisite finish and offers an uncompromising sense of quality and safety. The design of Square 1 complements and visually matches all other products in the AVOLT collection for a seamless experience.

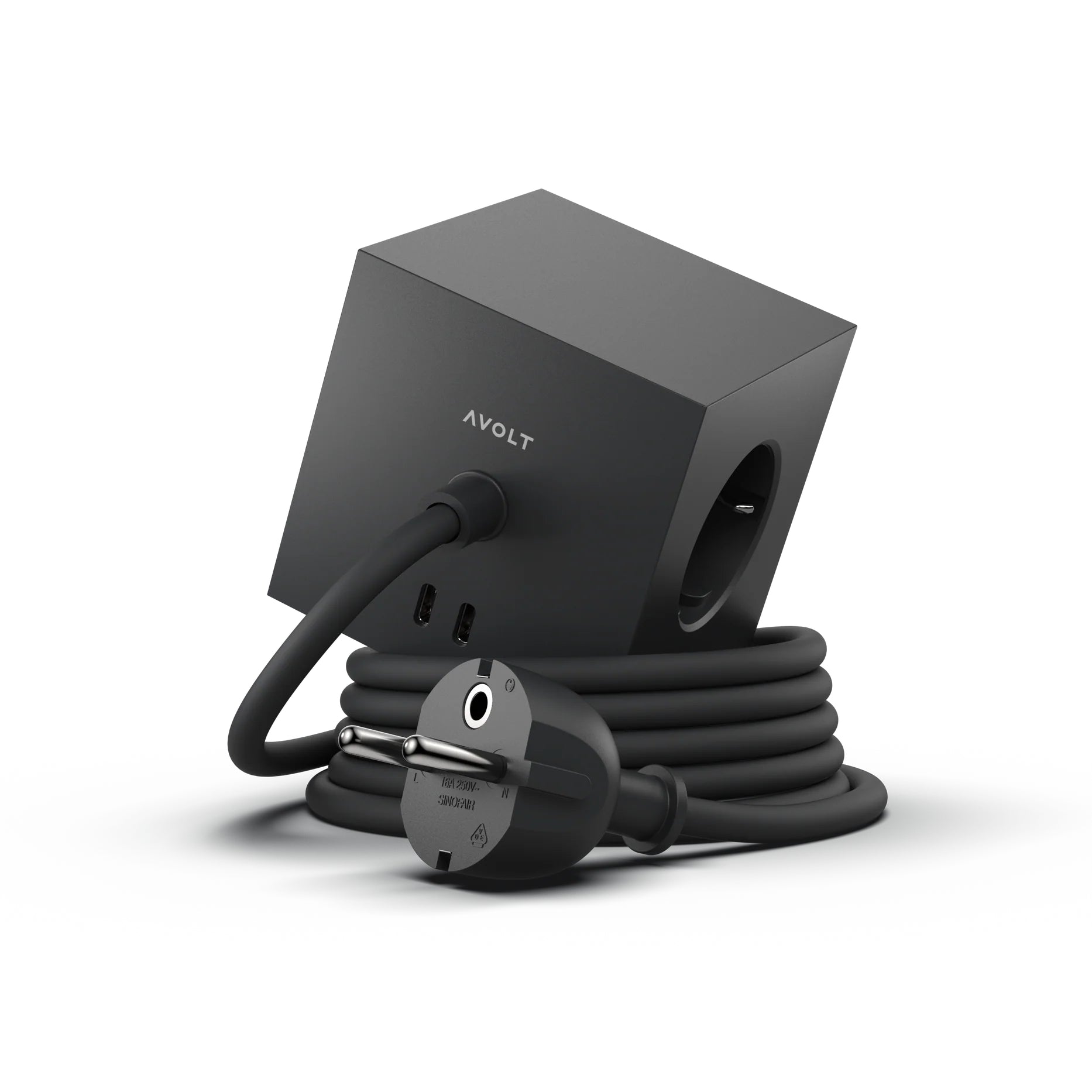

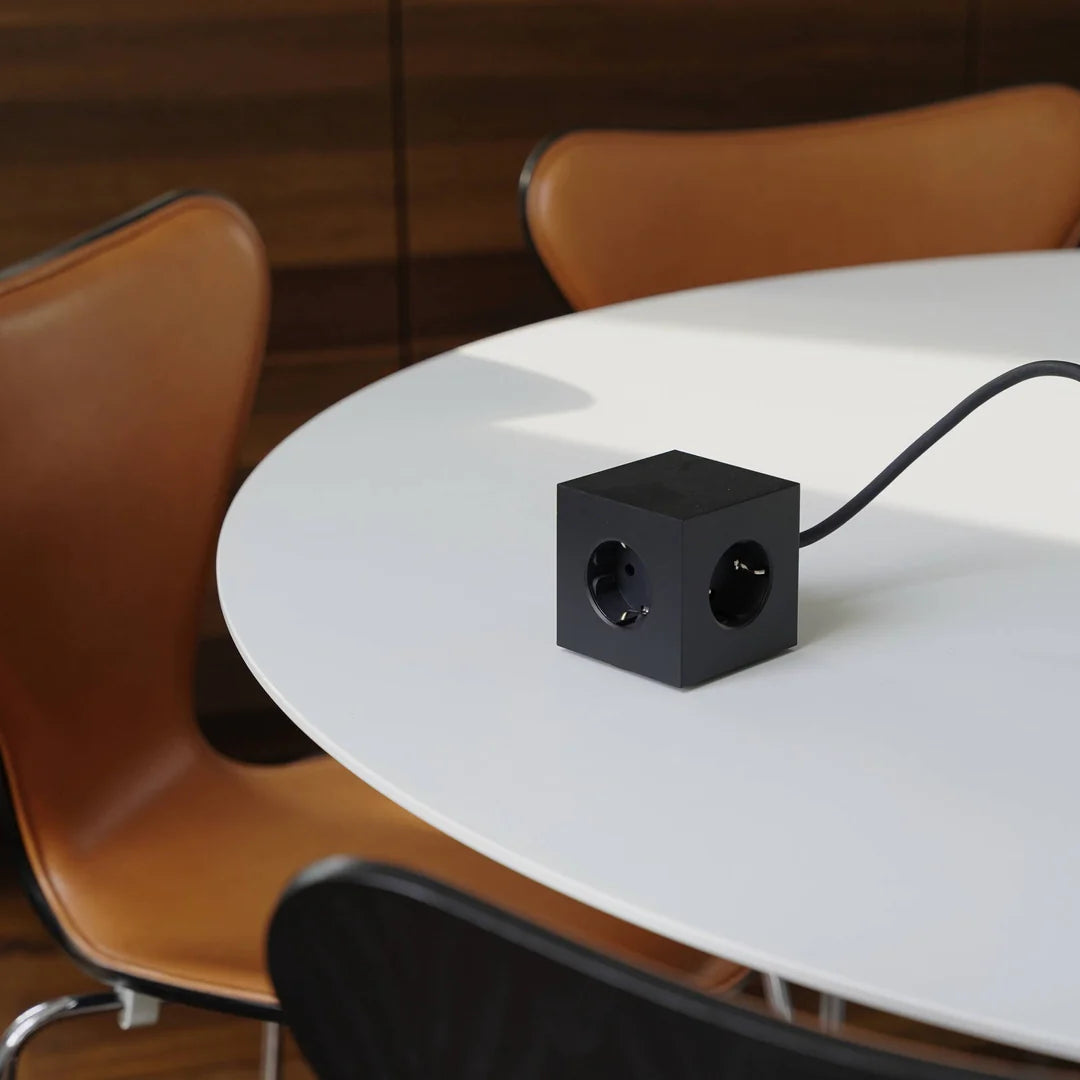

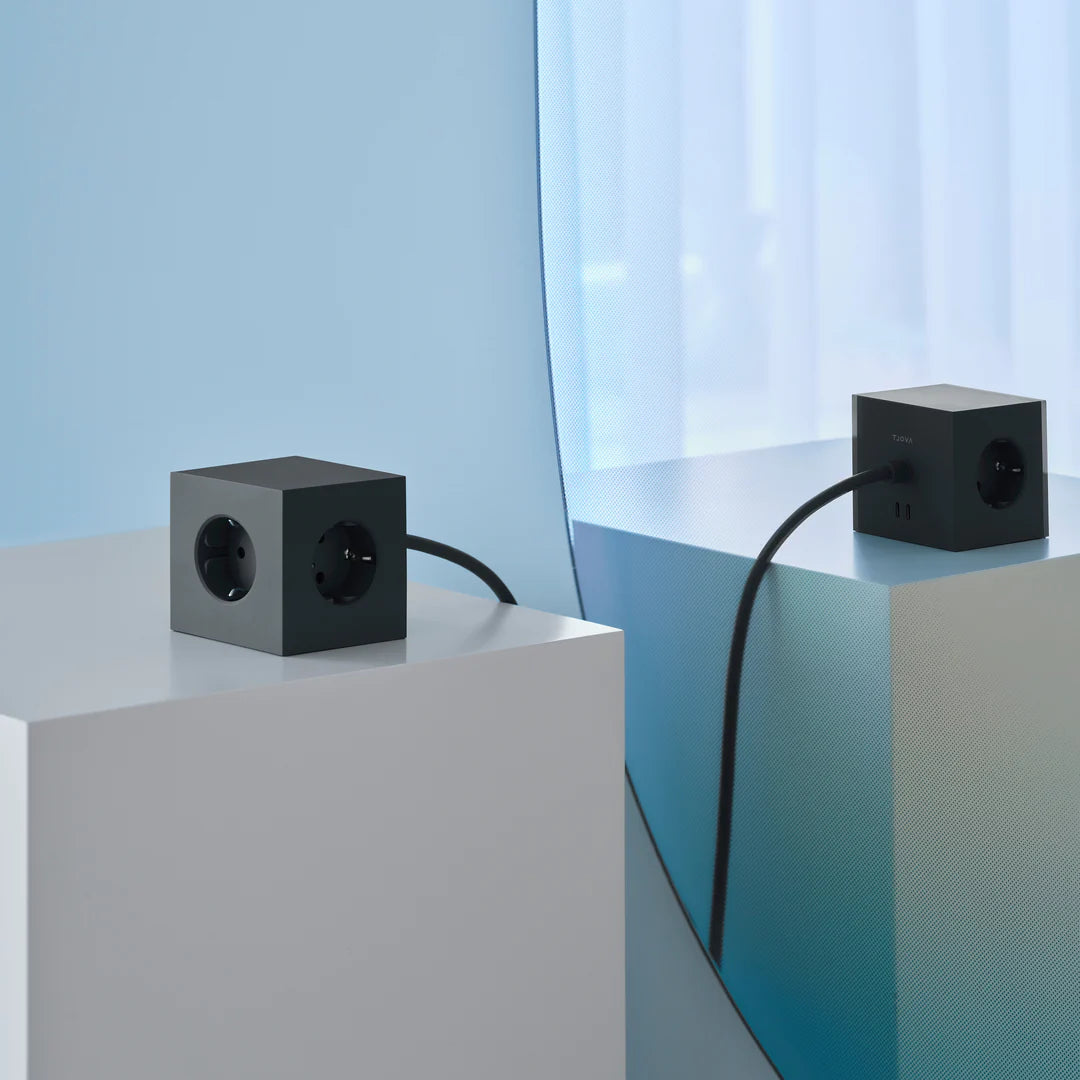

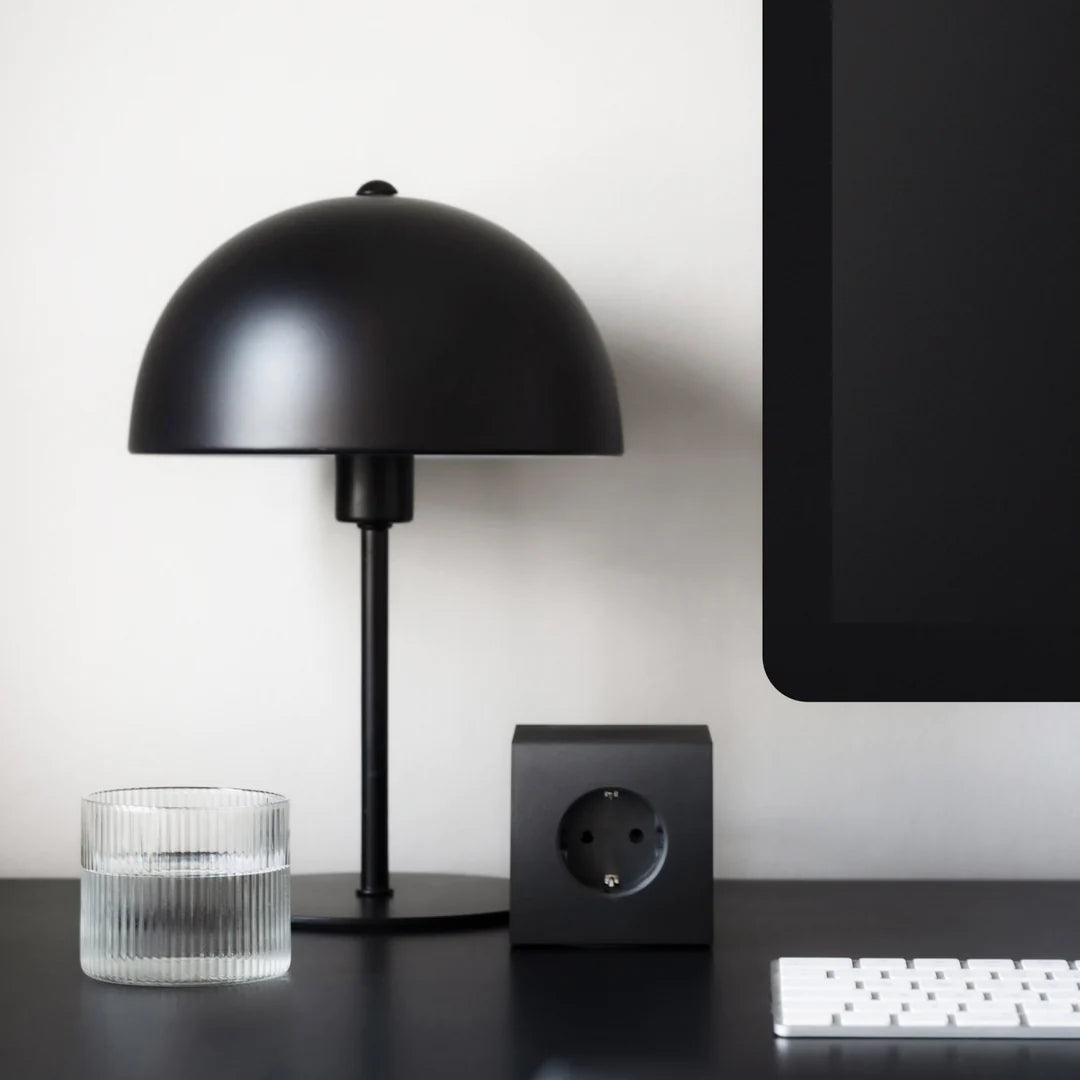

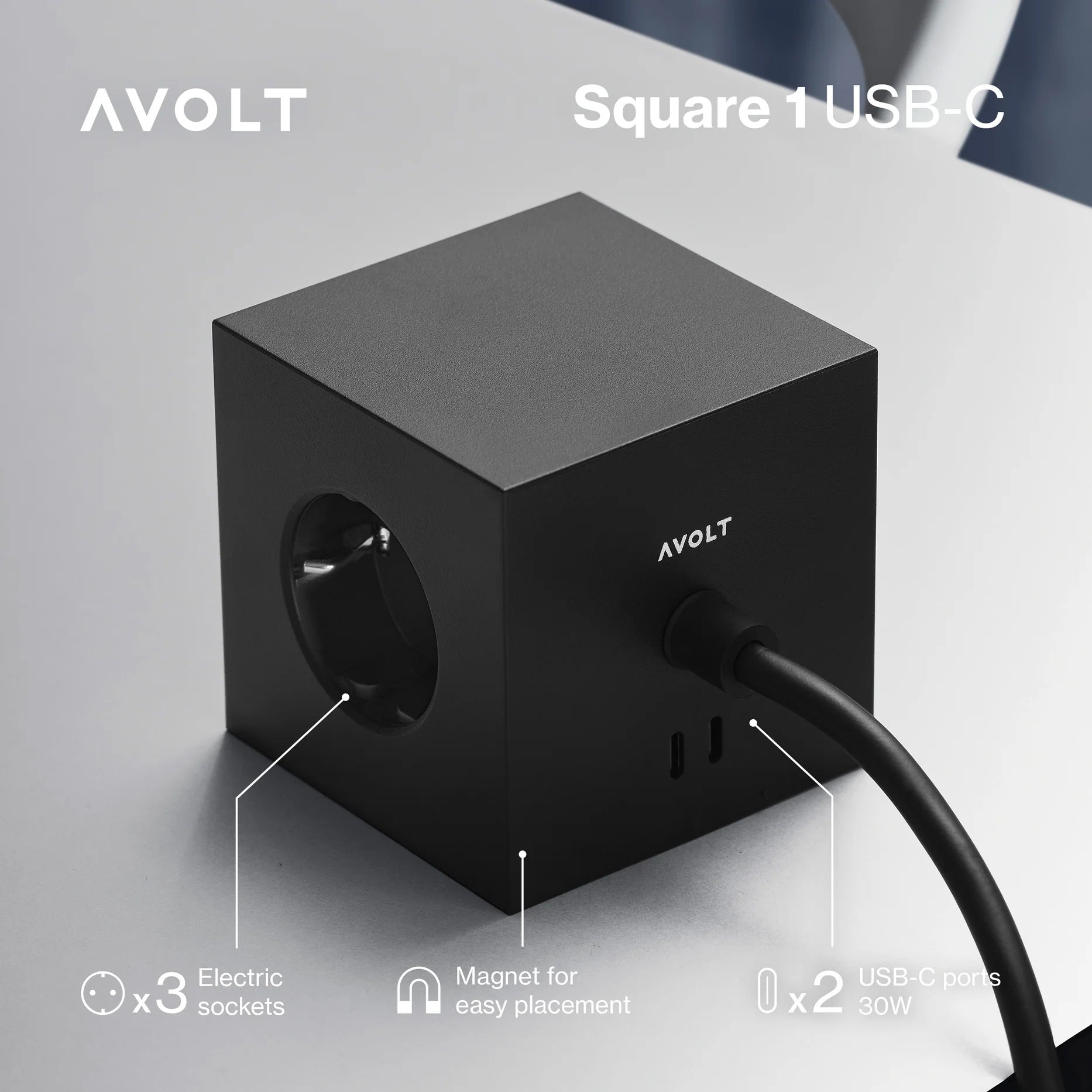

The updated Square 1 USBC is an iconic and minimalist power extender for homes, offices, and public spaces that offers excellent functionality and usability. It features three Type F Schuko sockets, dual USB Type C ports providing up to 30 W charging power, and a highly flexible 1.8 m power cable. The base of the product is magnetic. It can be safely mounted on any surface in combination with the included iron plate with a pre-applied adhesive strip. The Square 1 USBC is made from the finest materials with an exquisite finish and offers an uncompromising sense of quality and safety. The design of Square 1 complements and visually matches all other products in the AVOLT collection for a seamless experience.
Details
|
USB-A(15W) 1.8m |
USB-C(30W) 1.8m
|
| Electrical assessment |
230 VAC ~ 50/60 Hz, 16A, maximum load 3680 watts |
230 VAC ~ 50/60 Hz, 16A, maximum load 3680 watts |
| Plug and socket type |
CEE7/7 & x3 CEE 7/3 (Schuko / Type F) |
CEE7/7 & x3 CEE 7/3 (Schuko / Type F) |
| USB type |
2x USB type A |
2x USB Type C |
| Total USBC shared power |
Maximum 15.3 watts at 5VDC. Max 3.1A (shared between ports)
|
Maximum 30 Watts at 5 VDC. Max 3.1A (shared between ports)
|
| Single USB port power supply |
Maximum 10.2 watts at 5VDC. Max. 2.1 A (when only one port is in use) |
30 W MAX (5V⎓3A/9V⎓3A/12V⎓2.5A/15V⎓2A/20V⎓1.5A) |
| USB protection |
OVP/OCP/OTP/short-circuit protection. |
OVP/OCP/OTP/short-circuit protection. |
| Cable length |
1.8 m |
1.8 m |
| Cable material |
Soft-feeling PVC |
Soft-feeling PVC |
| Case size |
76x76x76mm |
76x76x76mm |
| Housing material |
Plastic (PC, ABS) (20% recycled) |
Plastic (PC, ABS) (20% recycled) |
| Basic magnet |
YES, x4 Neodymium |
YES, x4 Neodymium |
| Certifications |
CE, S, ROHS-compliant, GS-compliant |
CE, S, ROHS, REACH |
| Product weight |
450 grams |
450 grams |
| Country of origin |
VRC |
VRC |
| Insulation class |
Class 1 |
Class 1 |
| IP value |
IP20 |
IP20 |
| Socket shutters |
YES |
YES |
| Operating temperature |
-10°C to 40°C |
-10°C to 40°C |
| Power consumption when inactive (Watts) |
|
<0.08 |
